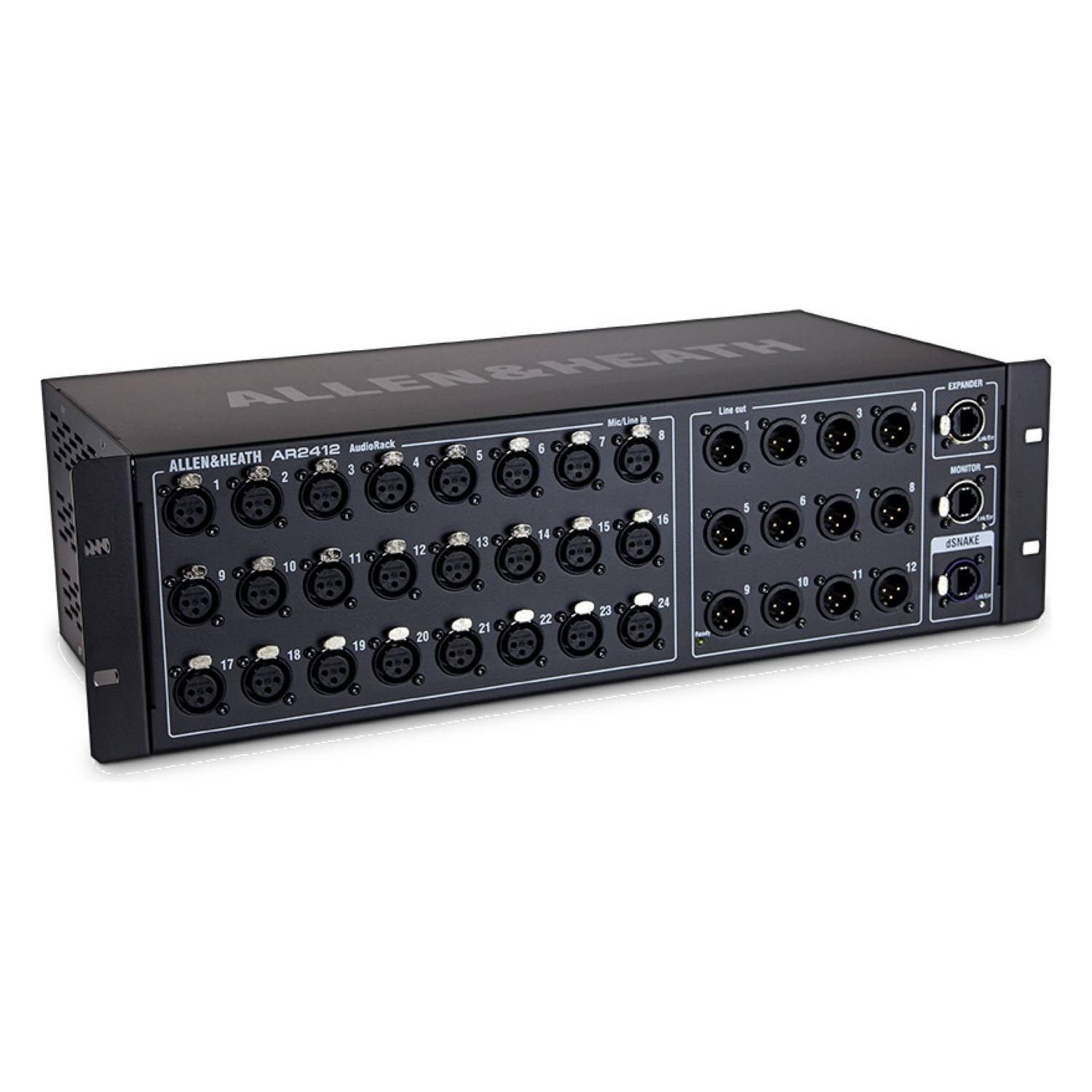

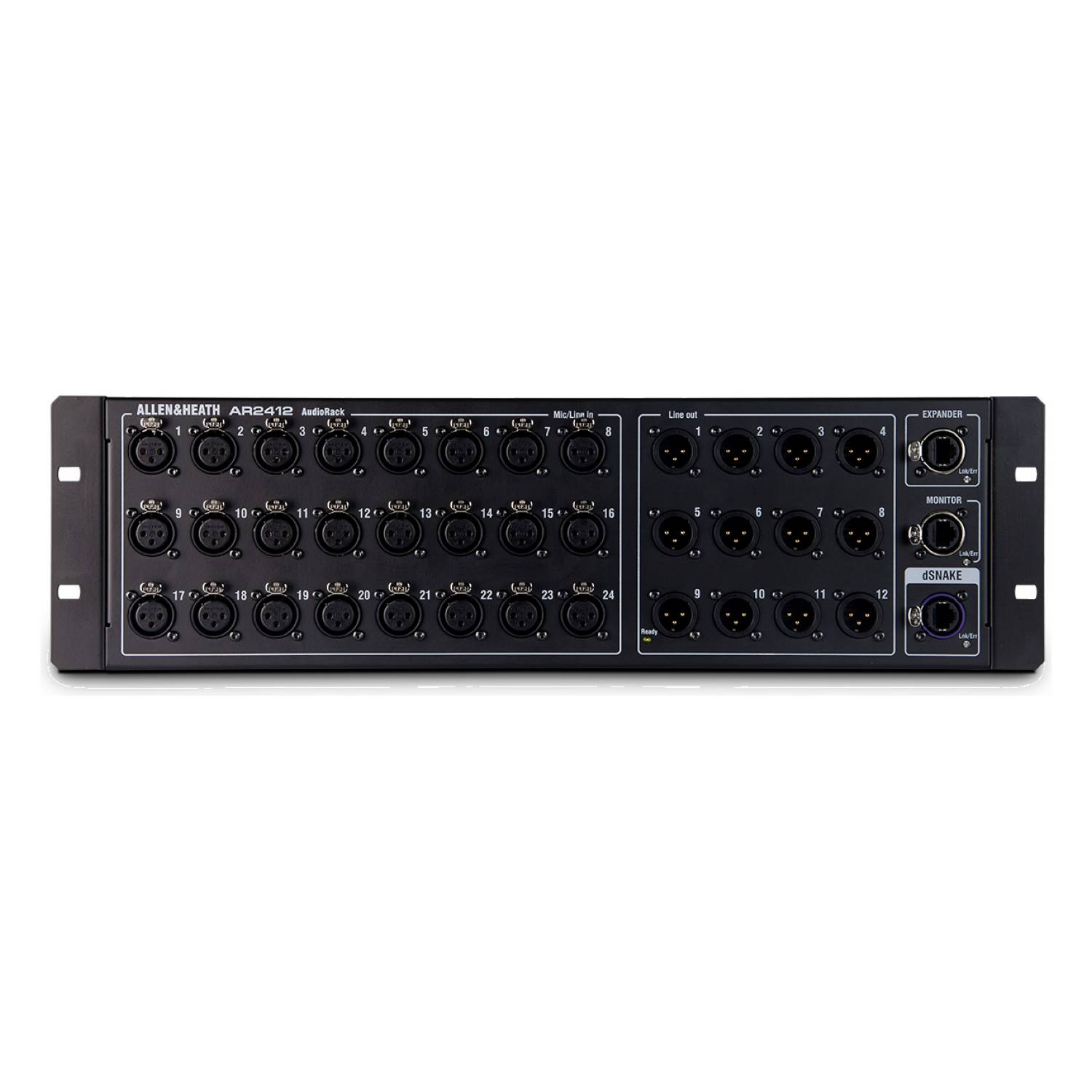

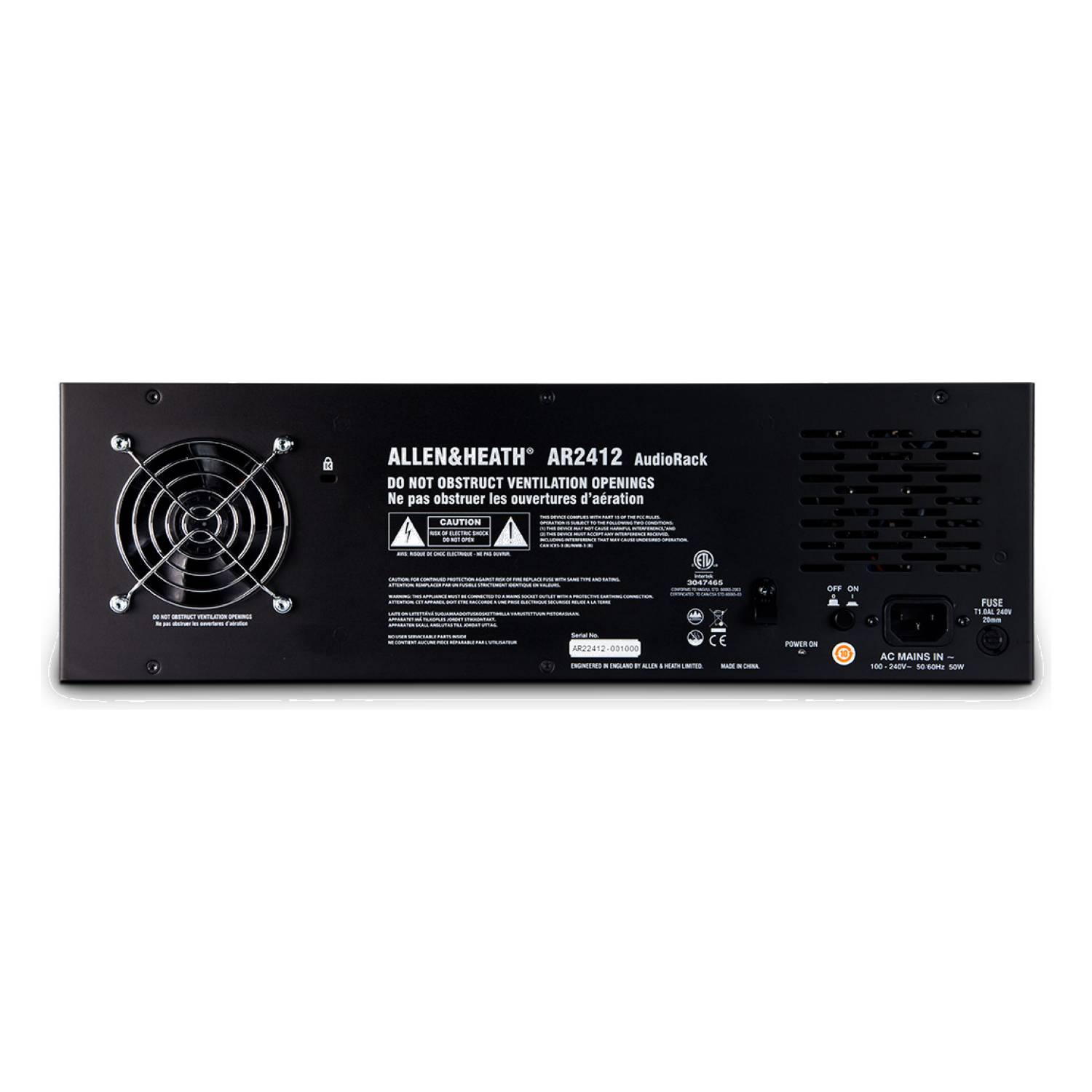

Allen & Heath AR2412 Digital Stage Box
$140.00/ Day
Features include:
- Inputs/Outputs: 24 recallable microphone preamps (+60dB gain, -20dB pad) and 12 balanced, relay-protected XLR line outputs.
- Connectivity: Uses dSNAKE protocol for low-latency digital audio and remote control.
- Expansion: Includes an Expander port to daisy-chain an AR84 or AB168 AudioRack for up to 16 additional inputs.
- Personal Monitoring: Features a dedicated Monitor port for connecting ME-1 personal mixers.
- Design: Rack-mountable with locking XLRs and Ethercon connector.
- Functionality: Automatic, plug-and-play setup with firmware matching the main mixer.
Allen & Heath AR2412 is a 24 XLR input, 12 XLR output AudioRack. Adding an AR2412 to your Qu system lets you position some or all of your I/O up to 120m from the Qu mixer, connected over a single Cat5 cable running Allen & Heath’s dSNAKE protocol. dSNAKE provides control to the remote preamp, and all mic preamps are scene recallable. AR2412 also includes a Monitor port for connection to ME-1 personal mixers, and an Expander port for daisy chaining to an AR84 AudioRack (Qu-24 only).
Qu mixers are self-contained, so if you’ve already got the analogue cables you’re good to go. If you’re thinking of trading in the copper multicore for a Cat5 digital snake, Qu’s dSNAKE port has you future-proofed, allowing connection to a combination of AR2412, AR84 or portable AB168 AudioRacks.
dSNAKE is Allen & Heath’s proprietary networking solution, boasting a transport latency of only 105us over cable runs of up to 120m / 390’. So if you’re mixing FoH you can place your I/O on the stage and run a single Cat5 cable back to the Qu mixer in the mix position.
Add the Allen & Heath AR2412 to your Allen & Heath Allen & Heath SQ-5 or Allen & Heath QU16 rental.
