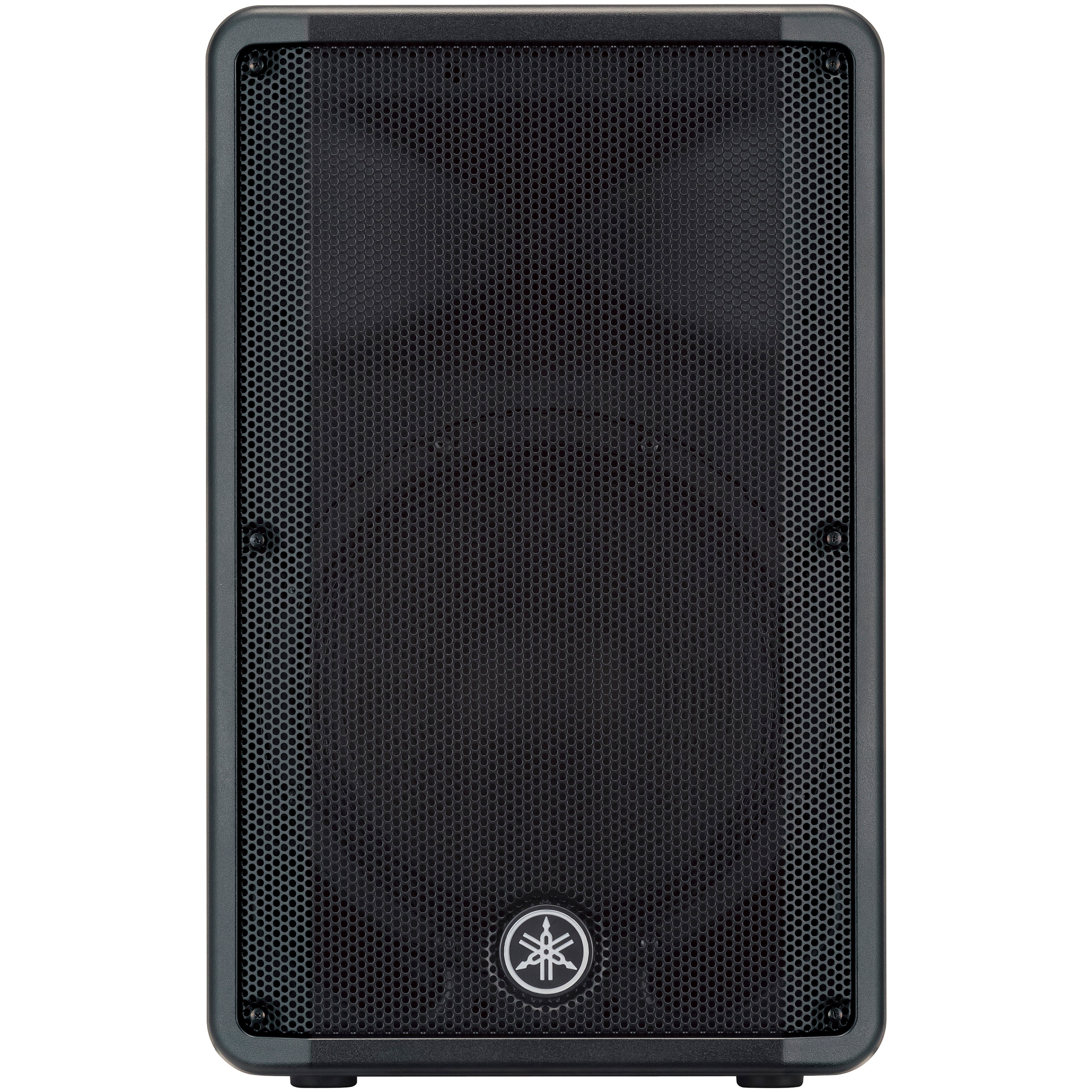

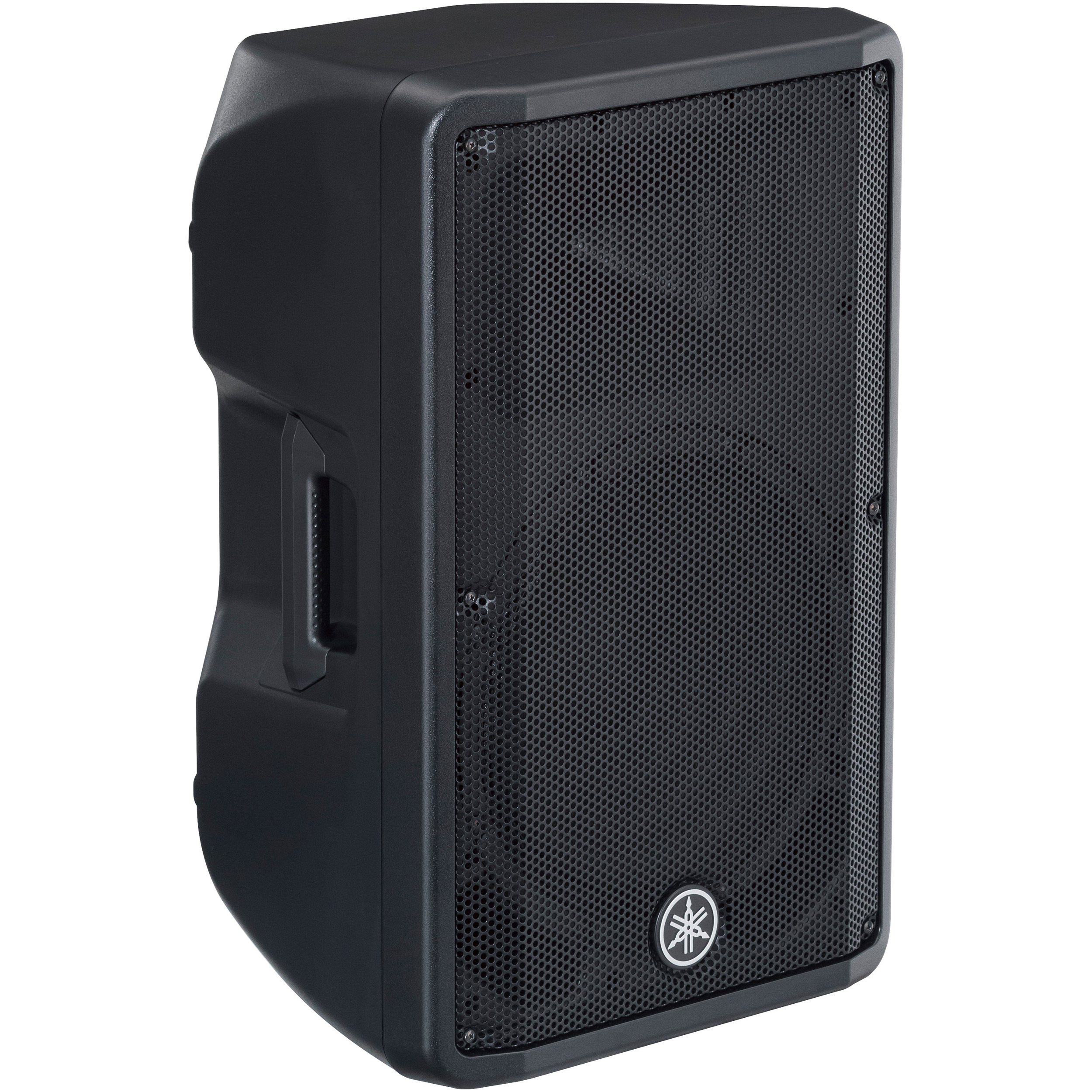

Yamaha DBR12 1000W 10-Inch Powered Speaker
$60.00/ Day
The Yamaha DBR12 is a 1000W, 12‑inch powered speaker designed for clear, high‑output sound in live, DJ, and installation setups. Its lightweight cabinet works for FOH, floor monitoring, or rigged use, while Yamaha’s advanced DSP and Class‑D amplification deliver up to 131dB with impressive clarity. The built‑in 2‑channel mixer supports mic, line, and RCA inputs, and the custom transducers provide tight bass and crisp highs. With M8 rigging points, a durable enclosure, and ergonomic handles, the DBR12 is a portable, versatile solution for professional audio.
Specifications
Powered: Yes
Power Configuration: Bi-amped
LF Driver Size: 1 x 12″
HF Driver Size: 1.4″
LF Driver Power Amp: 800W
HF Driver Power Amp: 200W
Total Power: 1000W
Inputs: 2 x XLR/TRS Combo, 1 x Stereo
Outputs: 1 x XLR
Frequency Range: 52Hz-20kHz (-10dB)
Crossover Frequency: 2.1kHz
Maximum Peak SPL: 131dB
Horizontal Coverage Angle: 90 Degrees
Vertical Coverage Angle: 60 Degrees
Enclosure Material: Plastic
Mounting Options: Pole Mount with 1.37″ socket, Floor Wedge, 3 x M8 Fly Points
Power Source: Standard IEC AC cable
Height: 601 mm
Width: 376 mm
Depth: 348 mm
Weight: 15.3 kg
Manufacturer Part Number: DBR12
The Yamaha DBR12 is a 1000W, 12‑inch powered loudspeaker built for clear, punchy sound in any setting. Its newly designed, lightweight cabinet is engineered for front‑of‑house use, floor monitoring, and rigged installations, giving performers, DJs, and event hosts a reliable speaker that elevates every show.
Powerful Performance Wherever You Play
The DBR12 delivers impressive output with clean, high‑quality audio, making it suitable for everything from live bands to mobile DJs. Despite its power, the speaker remains easy to transport and quick to set up. Yamaha equips the DBR Series with the same advanced DSP, amplifier design, and speaker technology found in the professional DSR and DXR lineups, ensuring consistent performance across all environments.

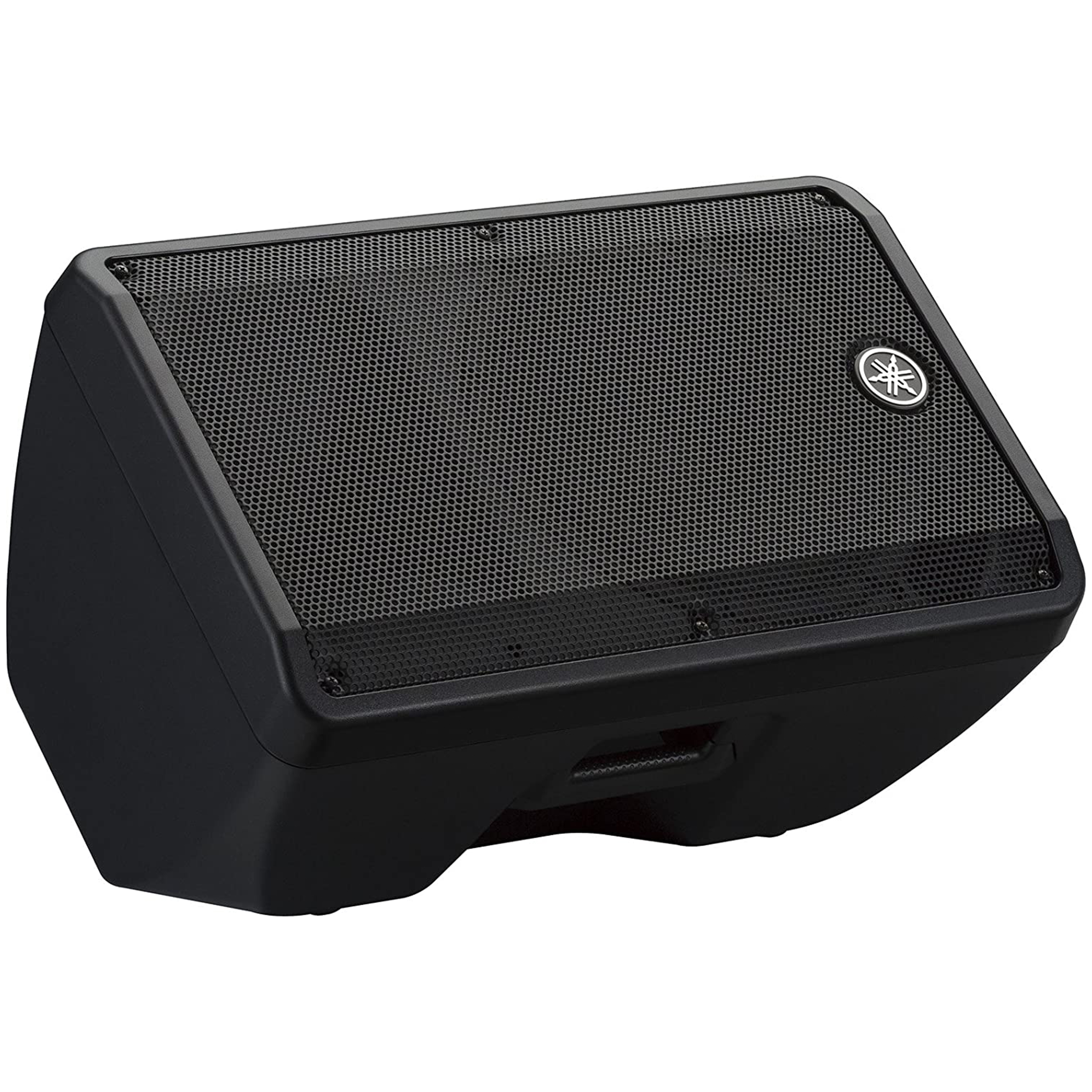

Smart Enclosure for Monitoring
For stage use, the DBR12 features an optimised 50° wedge angle that makes it an excellent floor monitor. Its symmetrical cabinet design also allows simple mirror‑mode setups, whether you need a stereo field or a matched pair for performers.

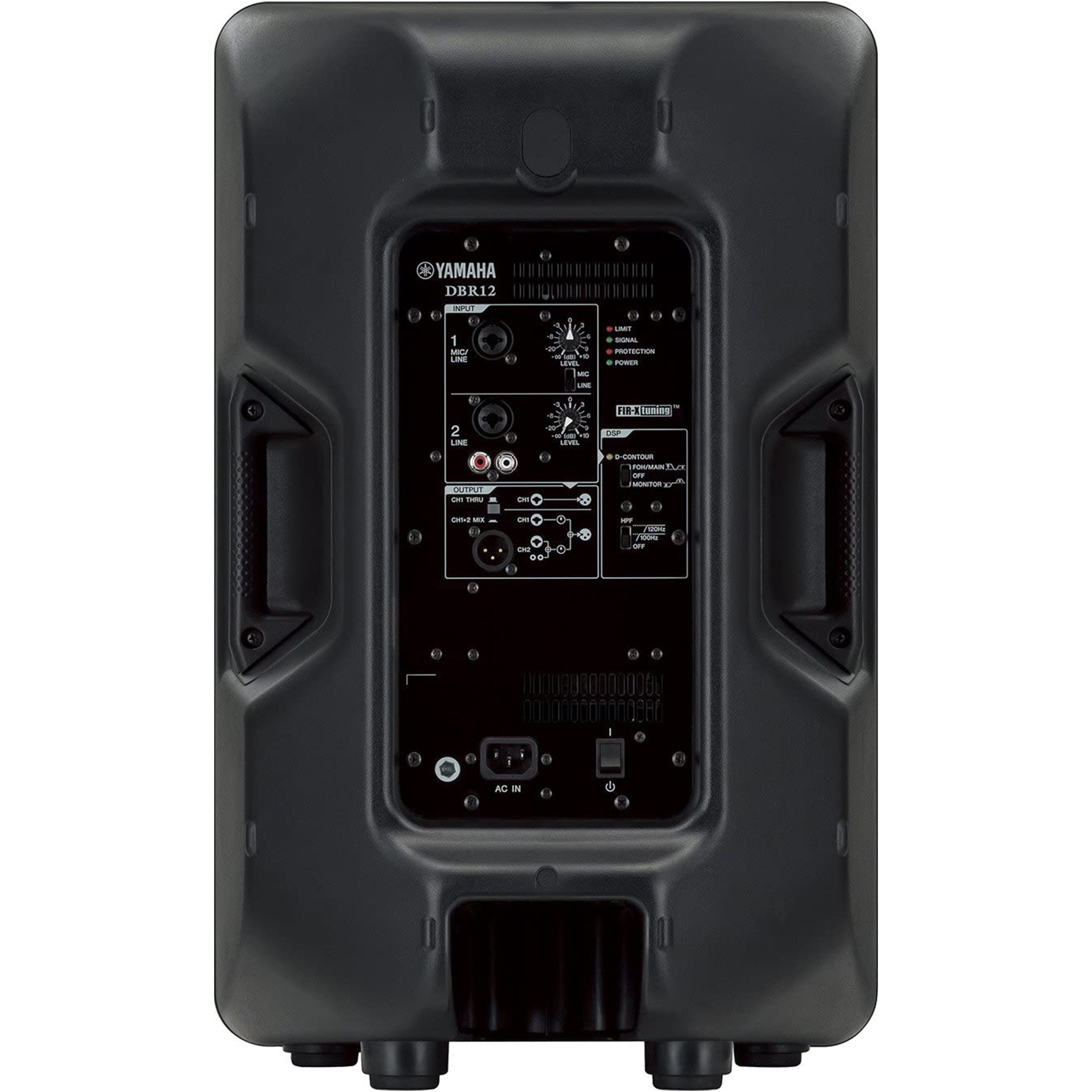

Built‑In 2‑Channel Mixer
Yamaha DBR12 includes a flexible onboard mixer with two input channels.
- CH1 uses a combo jack that accepts both XLR and TRS, supporting mic or line‑level signals.
- CH2 offers a combo jack plus stereo RCA inputs, ideal for media players or other line‑level sources.
You can run CH1 + CH2 as a mixed output or use CH1 THRU to pass only the first channel to additional speakers.

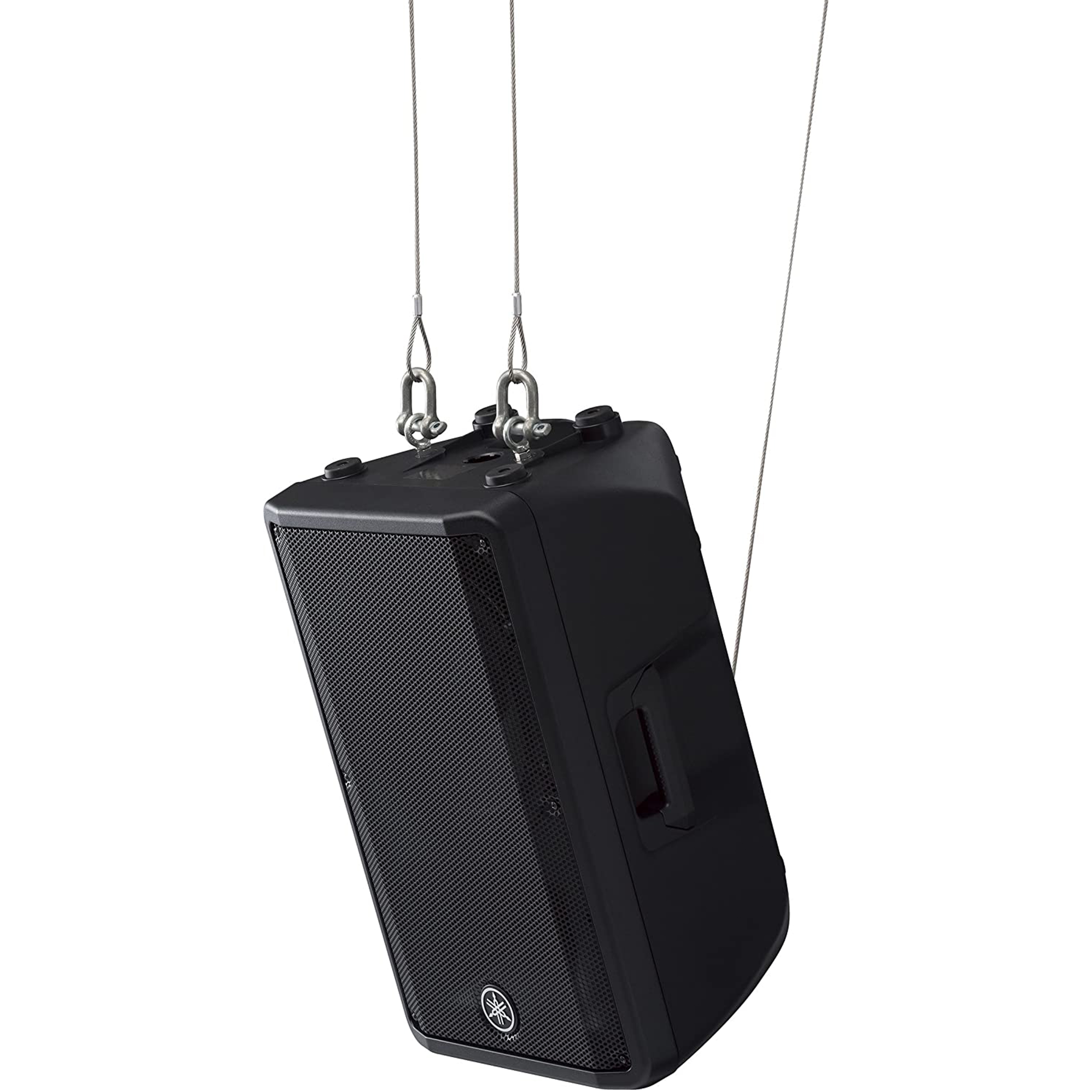

Rigging Options for Installations
For fixed installations, the DBR12 includes M8 rigging points, allowing secure mounting with optional brackets or standard eye‑bolts.
High‑Efficiency 1000W Class‑D Amplification
A lightweight Class‑D amplifier powers the DBR12, delivering up to 1000W and reaching a maximum SPL of 131dB. The result is strong output with excellent clarity and dynamic response.
Custom Yamaha Transducers
The DBR12’s purpose‑built woofer provides tight, controlled low‑end with minimal distortion, while the 1.4″ compression driver delivers accurate mids and crisp high frequencies for a balanced, full‑range sound.
Durable, Portable Cabinet Design
The DBR Series uses a rugged, compact plastic enclosure that offers exceptional portability. A steel grille protects the internal components, and redesigned ergonomic handles make transport and setup effortless.
